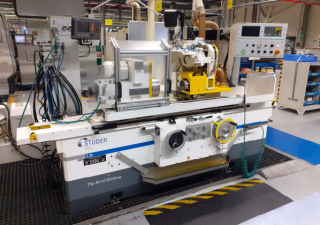

Studer S 40 CNC Cylindrical centreless grinding machine

Listing description

Controller :
GE FANUC Series 16-GC
Centre height
175 mm
Distance between centres
1000 mm
Workpiece weight on centres max.
130 kg
Workpiece dimensions:
Grinding weehl left side:
Diameter
400 mm
Width
80 mm
Bore
127 mm
Grinding wheel right side:
Diameter
400 mm
Width
80 mm
Bore
127 mm
B axis resolution max.
5 °
B axis swivelling range (automatic)
15° + 205 °
Grinding wheel speeds:
number (steps)
2
up to
1670 / 2110 rpm
Peripheral speed
35 m/s
Rotatable grinding spindle head
5 °
Revolving unit with Hirth serration
Longitudinal slide:
Max. travel
1050 mm
Resolution
0.0001 mm
Feed speed up
0.0001 - 10000 mm/min
Transversal slide:
Max. travel
275 mm
Resolution
0.0001 mm
Feed speed up
0.0001 - 10000 mm/min
Work piece spindle head:
speeds:
from
30 rpm
up to
750 rpm
rotatable
90 °
taper in spindle: MT
5
Required power
0.785 kW
Tailstock:
Hydraulic return
Taper in tailstock:
3 MT
Tailstock travel of barrel
35 mm
Max. table angular displacement
8.5 °
Air connect
5 bar
Voltage 50 Hz 3x
400 Volt
Workpiece spindle motor
7.5 kW
Total power required
30 kVA
Machine's weight about
5100 kg
Overall dimensions machine:
Length
3750 mm
Width
1200 mm
Height
2300 mm
Various accessories:
Coolant system
Paper filter facility
Internal grinding attachment:
Number of spindles
1
up to
60000 rpm
Lamp
Tailstock with fine adjustement
Electronic hand held control
